1771-P5 1771P5 AB AB 24V DC Power Supply

MOORE AUTOMATION LIMITED
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

1771-P5 1771P5 AB AB 24V DC Power Supply

  • 1
  • 2

Brand Name : AB

Model Number : 1771-P5

Certification : CO.CQ

Place of Origin : USA

MOQ : 1

Price : inquiry

Payment Terms : T/T

Supply Ability : 10 pieces a day

Delivery Time : today

Packaging Details : new and original with factory sealed

Manufacture Year : 2020

Con 6DS1311-8AEtrol System : 1771-P5

Application : Nuclear Power Plant

lead time : in stock

description : AB

Weight : 4lbs

Contact Now

1771-P5 1771P5 AB AB 24V DC Power Supply

⇒ Click here for good price 1771-P5

Brand/Manufacturer AB/USA
Part Number

1771-P5

Alternate Part Number 1771-P5
Description MOTOR SERVO
Dimennsions

6x16.5x27.1cm

Weight 1.1kg

Contact Us

Email: miya@mvme.cn (CLICK)

QQ: 2851195450

Tel: 86-18020776792(CLICK)

Skype:miyazheng520(CLICK)

Product Details

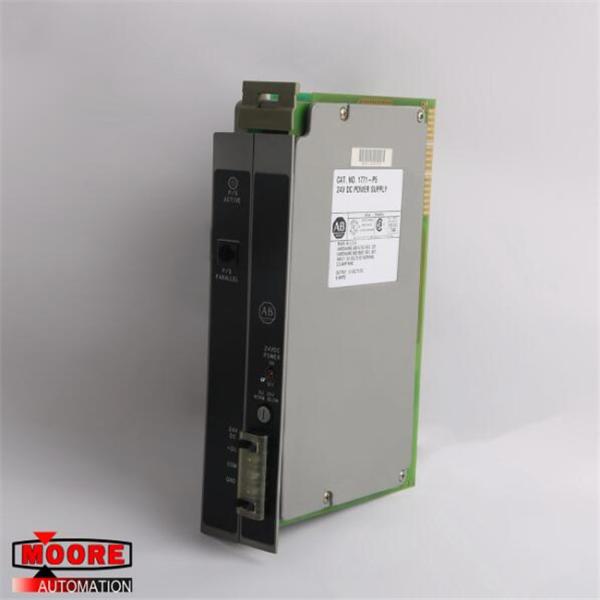

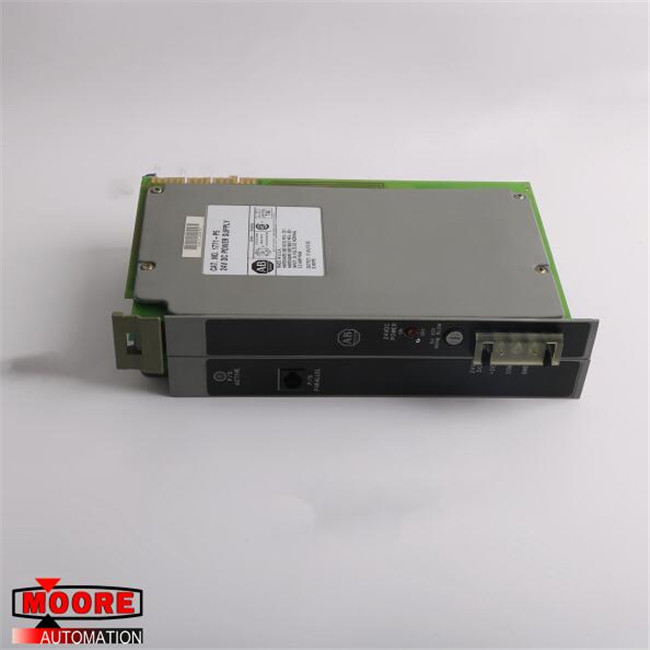

The 1771-P5 PLC 5 Power Supply Module by AB is a power supply module fitted in a double 1771 I/O chassis with an input rating of 20.5-30V DC and supplies an output voltage of 5.06V DC. It has an operational voltage range of 20.5-30V DC with an input power of 57W and it supplies an output current up to 8A at 5.01V DC (-+3.8%) output voltage. The 1771-P5 provides circuit isolation tested at 1500V AC (RMS) or 2160V DC for 1 second between input line to chassis ground and provide circuit protection through the 5A, 32V Normal blow fuse (Bussman MTH5). The module has an adjustable power loss delay time of 13.6ms (3.6ms) or 60ms between input power loss-to-processor disable.


Most power supply modules can be connected in parallel, but the 1771-P5, can only be connected in parallel with another 1771-P5 module using the 1771-CT parallel connection cable, and the module is keyed to the backplane by connection of the keying band (shipped with the module) between pins 12 and 14, 22 and 24. Its working temperature ranges between 0 and 60 degrees Celsius without de-rating around a relative humidity range of 5-95% without condensation and is kept at a temperature range between -40 and 85 degrees Celsius. The 1771-P5 is UL and CSA/H-certified. The module weighs approximately 1.18Kg (2.6lb).

1771-P5 1771P5 AB AB 24V DC Power Supply

Why choose us

1. We will provie you the product info and picuture
2.Large stock, fast delivery
3.Competitive prices and immdiate quotation
4.Professional service,professional technical support
5. Warranty time is one year.
6. Strict test machine before shipment.
7. We could help you to get any components which is difficult to get
