Product Details

he 1771-OAN is an AB discrete output module that is compatible with the PLC5 product family. This module is a High Density output module with Thirty-Two (32) channels having 1.0A per channel, 2.0A per group and 8.0 per module.

This module has Four (4) groups of Eight (8) channels each. This module may only be installed with 1771 chassis such as 1771-A1B thru A4B. or later 1771 I/O chassis. The operating Voltage category of this module is 120 / 240VAC with a Voltage range of 85 to 264 VAC at 47-63 Hz.

This module is basically a 32-bit module where each channel represents a bit of the processor memory. These bits are accessed using RSLogix 5 programming software. Using this software, the module is added to the system via the hardware configuration. Once configured in the hardware configuration, the 32-Bit register may be accessed in the Binary Data files of the software. Compared to other output modules, the module’s output current is higher which can be used to drive electrical loads.

Why choose us

1. We will provie you the product info and picuture
2.Large stock, fast delivery
3.Competitive prices and immdiate quotation
4.Professional service,professional technical support
5. Warranty time is one year.
6. Strict test machine before shipment.
7. We could help you to get any components which is difficult to get

More Products

1771-OAN

Digital Output Module

AB 1771-OAN

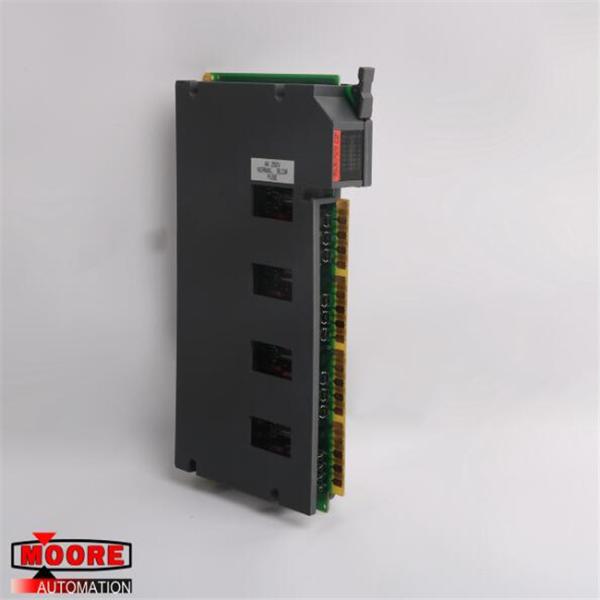

1771-OAN 1771OAN AB AB Digital Output Module Images
